STTH2R02AF-Y

Automotive ultrafast rectifier

STTH2R02AF-Y Features

* Low conduction losses

* Negligible switching losses

* Low forward and reverse recovery times

* High junction temperature

* AEC-Q101 qualified

* ECOPACK®2 compliant component

* PPAP capable STTH2R02AF-Y Automotive ultrafast rectifier Datash

STTH2R02AF-Y General Description

The STTH2R02AF-Y, implementing ST’s new 200 V planar technology, is especially suited for switching mode base drive and transistor circuits. The device is also intended for use as a free wheeling diode in power supplies and other power switching applications in automotive functions. Table 1. Device.

STTH2R02AF-Y Datasheet (185.46 KB)

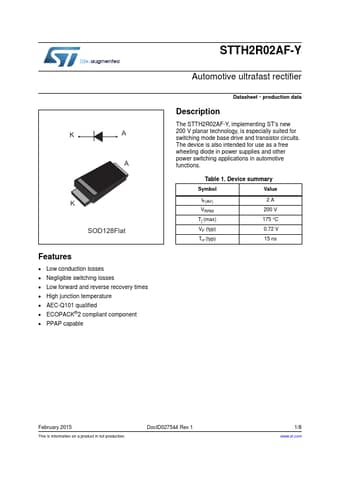

Preview of STTH2R02AF-Y PDF

Datasheet Details

Part number:

STTH2R02AF-Y

Manufacturer:

STMicroelectronics ↗

File Size:

185.46 KB

Description:

Automotive ultrafast rectifier.
