STTH2R02AY

Automotive 200V 2A ultrafast diode

STTH2R02AY Features

* AEC-Q101 qualified

* Very low conduction losses

* Negligible switching losses

* Low forward and reverse recovery times

* High junction temperature

* PPAP capable

* ECOPACK2 compliant Applications

* DC/DC converter

* Reverse po

STTH2R02AY General Description

The STTH2R02AY is based on ST´s 200 V planar Pt doping technology. This is leading to best in class VF/QRR performances, especially in high temperature environment. Packaged in SMA package, this device is particularly suitable for high frequency operations in automotive applications. DS13660 - Rev .

STTH2R02AY Datasheet (171.62 KB)

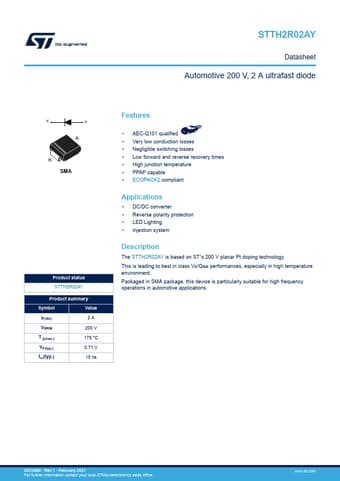

Preview of STTH2R02AY PDF

Datasheet Details

Part number:

STTH2R02AY

Manufacturer:

STMicroelectronics ↗

File Size:

171.62 KB

Description:

Automotive 200v 2a ultrafast diode.
STTH2R02AY Datasheet Automotive 200 V, 2 A ultrafast diode K A A K SMA Product status STTH2R02AY Product summary Symbol Value IF(AV) 2A VRR.
