STTH2R06

HIGH EFFICIENCY ULTRAFAST DIODE

STTH2R06 Features

* 2A 600 V 175°C 1V 35 ns DO-41 STTH2R06 A K Very low conduction losses Negligible switching losses Low forward and reverse recovery times High junction temperature SMA STTH2R06A DESCRIPTION The STTH2R06 is using ST Turbo 2 600V planar Pt doping technology. It is speciall

STTH2R06 General Description

The STTH2R06 is using ST Turbo 2 600V planar Pt doping technology. It is specially suited for switching mode base drive & transistor circuits. Packaged in axial, SMA, SMB and SMC, this device is intended for use in high frequency inverters, free wheeling and polarity protection. SMB STTH2R06U Table .

STTH2R06 Datasheet (145.70 KB)

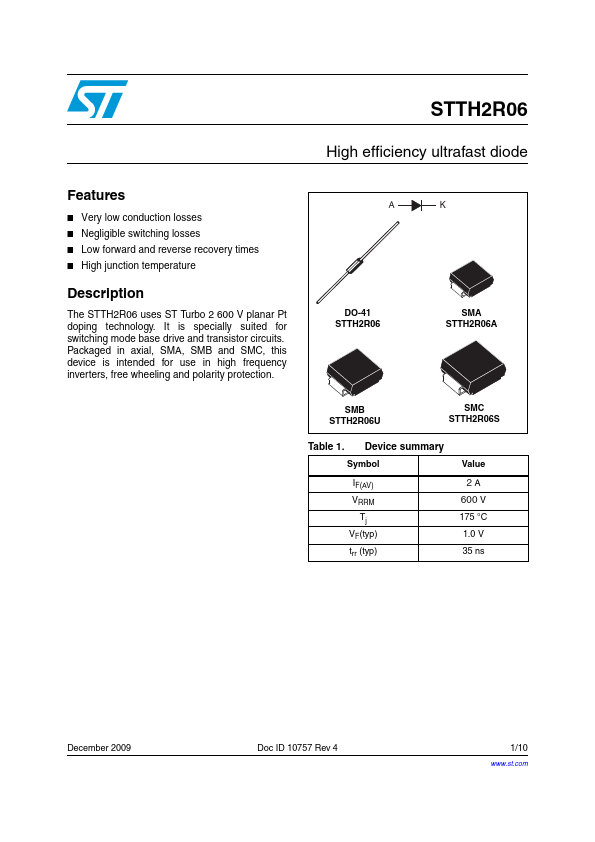

Preview of STTH2R06 PDF

Datasheet Details

Part number:

STTH2R06

Manufacturer:

STMicroelectronics ↗

File Size:

145.70 KB

Description:

High efficiency ultrafast diode.

📁 Related Datasheet

STTH2R02 Ultrafast recovery diode (ST Microelectronics)

STTH2R02-Y Automotive ultrafast recovery diode (STMicroelectronics)

STTH2R02AF-Y Automotive ultrafast rectifier (STMicroelectronics)

STTH2R02AY Automotive 200V 2A ultrafast diode (STMicroelectronics)

STTH20002TV TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER (ST Microelectronics)

STTH20003TV Ultrafast high voltage rectifier (ST Microelectronics)

STTH20004TV1 Ultrafast high voltage rectifier (ST Microelectronics)

STTH2002 Ultrafast recovery diode (ST Microelectronics)

STTH2002C HIGH EFFICIENCY ULTRAFAST DIODE (ST Microelectronics)

STTH2003 300V ultrafast rectifier (ST Microelectronics)

TAGS

STTH2R06 HIGH EFFICIENCY ULTRAFAST DIODE ST Microelectronics

Image Gallery

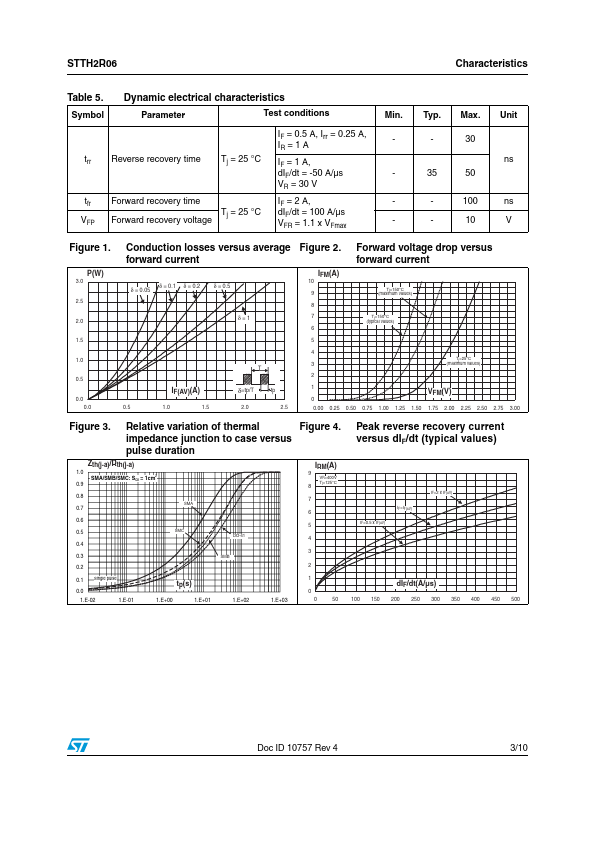

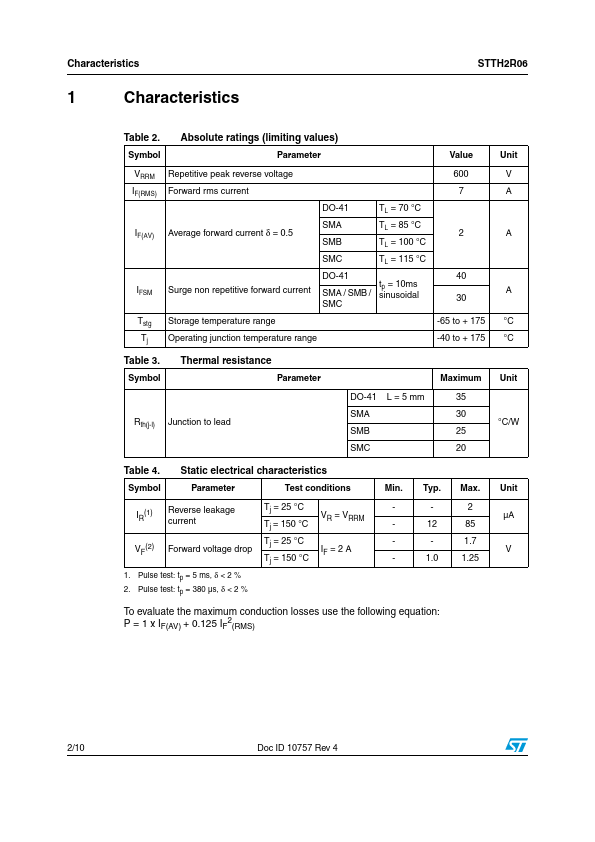

STTH2R06 Datasheet Preview Page 2 STTH2R06 Datasheet Preview Page 3
