STTH2R02

Ultrafast recovery diode

STTH2R02 Features

* Very low conduction losses

* Negligible switching losses

* Low forward voltage drop

* High junction temperature

* ECOPACK®2 compliant Applications

* Switching diode

* LED Lighting

* Auxiliary power supply

* Flyback diode Descr

STTH2R02 General Description

The STTH2R02 uses ST's patented 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits. Packaged in SMA, SMB, the STTH2R02 is optimized for use low voltage, high frequency inverters, free wheeling and polarity protection DS4744 - Rev 3 - .

STTH2R02 Datasheet (296.10 KB)

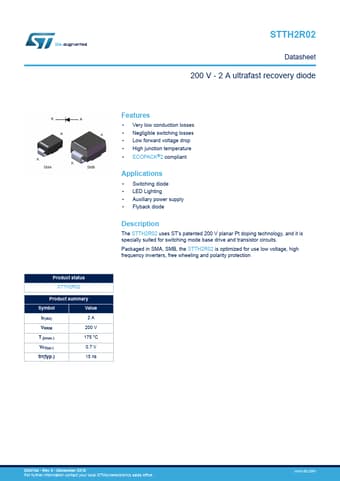

Preview of STTH2R02 PDF

Datasheet Details

Part number:

STTH2R02

Manufacturer:

STMicroelectronics ↗

File Size:

296.10 KB

Description:

Ultrafast recovery diode.
STTH2R02 Datasheet 200 V - 2 A ultrafast recovery diode Product status STTH2R02 Product summary Symbol Value IF(AV) 2A VRRM 200 V T j(max.) .
