STTH60W02C Turbo 2 ultrafast high voltage rectifier

STMicroelectronics

Description

STTH60W02C Turbo 2 ultrafast high voltage rectifier .
The STTH60W02CW uses ST Turbo 2, 200 V technology.

📥 Download Datasheet

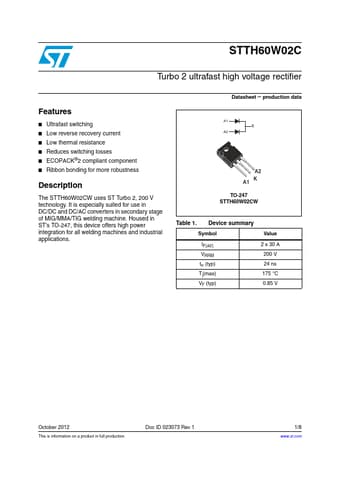

STTH60W02C Datasheet Preview — Preview of STTH60W02C PDF

Datasheet Specifications

Part number: STTH60W02C
Manufacturer: STMicroelectronics ↗
File Size: 96.82 KB
Datasheet: STTH60W02C-STMicroelectronics.pdf
Description: Turbo 2 ultrafast high voltage rectifier

Features

* Ultrafast switching
* Low reverse recovery current
* Low thermal resistance
* Reduces switching losses
* ECOPACK®2 compliant component

Applications

* Datasheet  production data A1 K A2 A2 A1 K TO-247 STTH60W02CW Table 1. Device summary Symbol Value IF(AV) VRRM trr (typ) Tj(max) VF (typ) 2 x 30 A 200 V 24 ns 175 °C 0.85 V October 2012 This is information on a product in full production. Doc ID 023073 Rev 1 1/8 www. st. com 8 Characteri
