Description

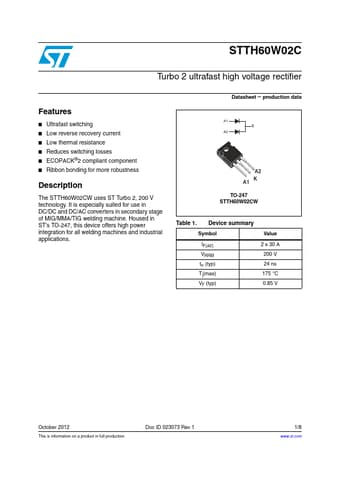

STTH60W02C Turbo 2 ultrafast high voltage rectifier .
The STTH60W02CW uses ST Turbo 2, 200 V technology.
Features
* Ultrafast switching
* Low reverse recovery current
* Low thermal resistance
* Reduces switching losses
* ECOPACK®2 compliant component
Applications
* Datasheet production data
A1 K
A2
A2 A1 K
TO-247 STTH60W02CW
Table 1. Device summary Symbol
Value
IF(AV) VRRM trr (typ) Tj(max) VF (typ)
2 x 30 A 200 V 24 ns 175 °C 0.85 V
October 2012
This is information on a product in full production. Doc ID 023073 Rev 1
1/8
www. st. com
8
