STTH75S12

Turbo 2 ultrafast high voltage rectifier

STTH75S12 Features

* Ultrafast switching

* Low reverse current

* Low thermal resistance

* Reduces switching and conduction losses Datasheet

* production data Description The STTH75S12 is developed using ST’s Turbo 2 1200 V technology. It is well-suited as a boost diode, especi

STTH75S12 General Description

The STTH75S12 is developed using ST’s Turbo 2 1200 V technology. It is well-suited as a boost diode, especially for use in UPS. Table 1. Device summary Symbol Value IF(AV) VRRM trr (typ) VF (typ) Tj (max) 75 A 1200 V 40 ns 1.9 V 175 °C September 2014 This is information on a product in full pr.

STTH75S12 Datasheet (157.09 KB)

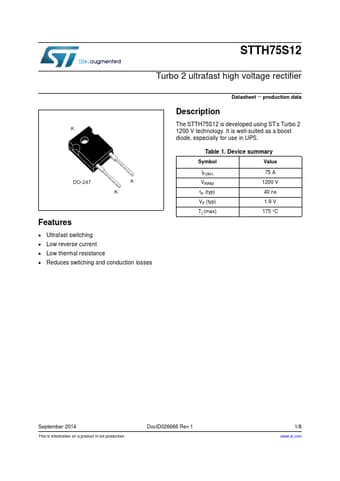

Preview of STTH75S12 PDF

Datasheet Details

Part number:

STTH75S12

Manufacturer:

STMicroelectronics ↗

File Size:

157.09 KB

Description:

Turbo 2 ultrafast high voltage rectifier.
