STTH9012TV Ultrafast recovery

STTH9012TV Description

STTH9012TV Ultrafast recovery - 1200 V diode Main product characteristics IF(AV) VRRM Tj VF (typ) trr (typ) 2 x 45 A 1200 V 150° C 1.20 V 50 ns K1 A1 .
The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness.

STTH9012TV Features

* Ultrafast, soft recovery Very low conduction and switching losses High frequency and/or high pulsed current operation High reverse voltage capability High junction temperature Insulated package: Electrical insulation = 2500 VRMS Capacitance = 45 pF ISOTOP Order

STTH9012TV Applications

* that demand long term reliability. Such demanding applications include industrial power supplies, motor control, and similar mission-critical systems that require rectification and freewheeling. These diodes also fit into auxiliary functions such as snubber, bootstrap, and demagnetization applicatio

📥 Download Datasheet

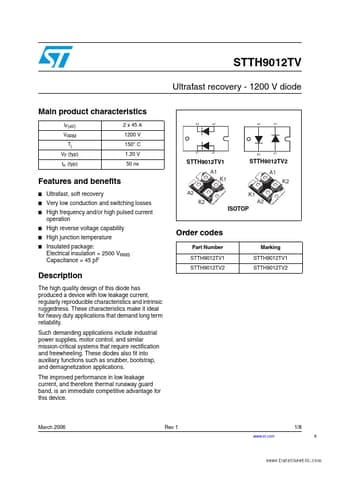

Preview of STTH9012TV PDF
datasheet Preview Page 2 datasheet Preview Page 3
