STV8130A - 3.3V AND ADJUSTABLE VOLTAGE REGULATORS

STMicroelectronics

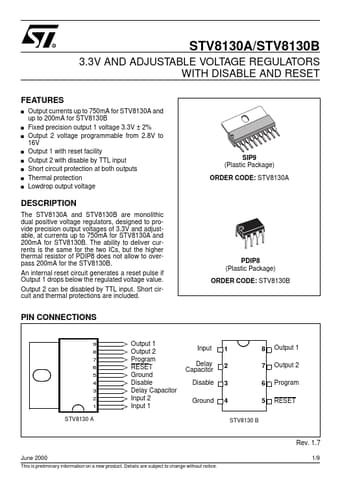

STV8130A Datasheet Preview — Preview of STV8130A PDF

Datasheet Details

Part number	STV8130A
Manufacturer	STMicroelectronics ↗
File Size	103.07 KB
Description	3.3V AND ADJUSTABLE VOLTAGE REGULATORS
Datasheet	STV8130A-STMicroelectronics.pdf

STV8130A Product details

Description

The STV8130A and STV8130B are monolithic dual positive voltage regulators, designed to provide precision output voltages of 3.3V and adjustable, at currents up to 750mA for STV8130A and 200mA for STV8130B.

Features

s s s s s s s s Output currents up to 750mA for STV8130A and up to 200mA for STV8130B Fixed precision output 1 voltage 3.3V ± 2% Output 2 voltage programmable from 2.8V to 16V Output 1 with reset facility Output 2 with disable by TTL input Short circuit protection at both outputs Thermal protection Lowdrop output voltage SIP9 (Plastic Package) ORDER CODE: STV8130A.
