STV8162D Triple-Voltage Regulator

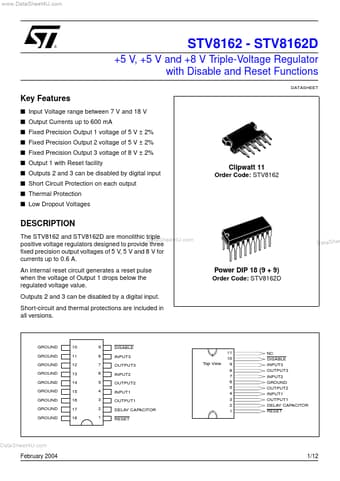

The STV8162 and STV8162D are monolithic triple DataSheet4U.com positive voltage regulators designed to provide three fixed precision output voltages of 5 V, 5 V and 8 V for currents up to 0.6 A. An internal reset circuit generates a reset pulse when the voltage of Output 1 drops below the regulated .

STV8162D Features

* Input Voltage range between 7 V and 18 V

* Output Currents up to 600 mA

* Fixed Precision Output 1 voltage of 5 V ± 2%

* Fixed Precision Output 2 voltage of 5 V ± 2%

* Fixed Precision Output 3 voltage of 8 V ± 2%

* Output 1 with Reset facility

* Outputs 2 and 3 can be d
