STV8162 Triple-Voltage Regulator

📥 Download Datasheet Datasheet Preview Page 1

Description

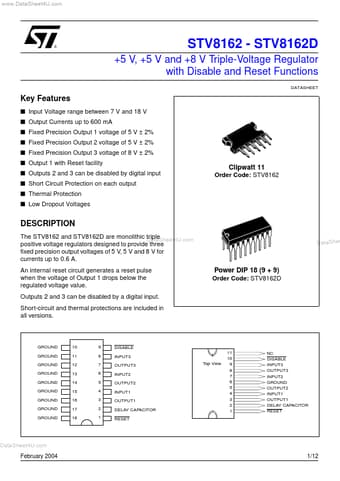

www.DataSheet4U.com ® STV8162 - STV8162D +5 V, +5 V and +8 V Triple-Voltage Regulator with Disable and Reset Functions DATASHEET Key .
The STV8162 and STV8162D are monolithic triple DataSheet4U.

📥 Download Datasheet

Preview of STV8162 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Input Voltage range between 7 V and 18 V
* Output Currents up to 600 mA
* Fixed Precision Output 1 voltage of 5 V ± 2%
* Fixed Precision Output 2 voltage of 5 V ± 2%
* Fixed Precision Output 3 voltage of 8 V ± 2%
* Output 1 with Reset facility
* Outputs 2 and 3 can be d

Applications

* all three inputs must be polarized. If Outputs 2 or 3 are not used, the corresponding inputs must be connected to Input 1. The Disable circuit will switch off pins OUTPUT2 and OUTPUT3 if a voltage less than 0.8 V is applied to pin DISABLE. The Reset circuit checks the voltage at pin OUTPUT1. If th
