STV8130AD Datasheet - STMicroelectronics

ADJUSTABLE AND 3.3 V DUAL VOLTAGE REGULATOR

STV8130AD Features

* s Input Voltage Range: 5 V to 18 V s Output Currents up to 750 mA www.DataSheet4U.com s Fixed Precision Output 1 Voltage: 3.3 V ±2% s Adjustable Output 2 Voltage: 2.8 to 16 V s Output 1 with Reset Function s Output 2 with Disable Function by TTL Input s Short-circuit Protection at both Outputs s T

STV8130AD General Description

The STV8130A# and STV8130D# are monolithic dual positive voltage regulators designed to provide a fixed precision output voltage of 3.3 V and an adjustable voltage between 2.8 and 16 V for currents up to 750 mA. An internal reset circuit generates a reset pulse when the voltage of Output 1 drops bel.

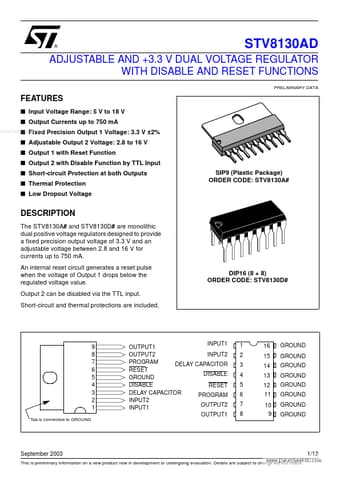

STV8130AD Datasheet (130.26 KB)

Preview of STV8130AD PDF

Datasheet Details

Part number:

STV8130AD

Manufacturer:

STMicroelectronics ↗

File Size:

130.26 KB

Description:

Adjustable and 3.3 v dual voltage regulator.
