STV8130B, STV8130A 3.3V AND ADJUSTABLE VOLTAGE REGULATORS

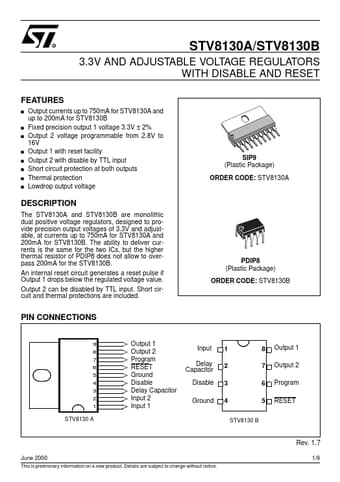

📥 Download Datasheet  Datasheet Preview Page 1

Description

STV8130A/STV8130B 3.3V AND ADJUSTABLE VOLTAGE REGULATORS WITH DISABLE AND RESET .
The STV8130A and STV8130B are monolithic dual positive voltage regulators, designed to provide precision output voltages of 3.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STV8130B, STV8130A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STV8130B, STV8130A
Manufacturer
STMicroelectronics ↗
File Size
103.07 KB
Datasheet
STV8130A-STMicroelectronics.pdf
Description
3.3V AND ADJUSTABLE VOLTAGE REGULATORS
Note
This datasheet PDF includes multiple part numbers: STV8130B, STV8130A.
Please refer to the document for exact specifications by model.

Features

* s s s s s s s s Output currents up to 750mA for STV8130A and up to 200mA for STV8130B Fixed precision output 1 voltage 3.3V ± 2% Output 2 voltage programmable from 2.8V to 16V Output 1 with reset facility Output 2 with disable by TTL input Short circuit protection at both outputs Thermal protecti
