STV80NE03L-06 N - CHANNEL 30V - 0.005ohm - 80A - PowerSO-10 STripFET MOSFET

ST Microelectronics

Description

STV80NE03L-06 N - CHANNEL 30V - 0.005Ω - 80A - PowerSO-10 STripFET™ MOSFET T YPE STV80NE03L-06 s s s s s V DSS 30 V R DS(on) < 0.006 Ω ID 80 A TYP.
This Power Mosfet is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

📥 Download Datasheet

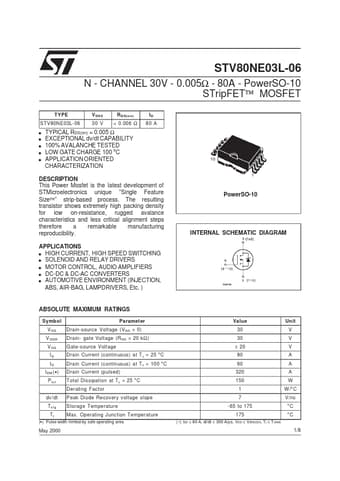

STV80NE03L-06 Datasheet Preview — Preview of STV80NE03L-06 PDF

Datasheet Specifications

Part number: STV80NE03L-06
Manufacturer: STMicroelectronics ↗
File Size: 91.96 KB
Datasheet: STV80NE03L-06_STMicroelectronics.pdf
Description: N - CHANNEL 30V - 0.005ohm - 80A - PowerSO-10 STripFET MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) 1 PowerSO-10 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM
