STV8164 Adjustable Triple-Voltage Regulator

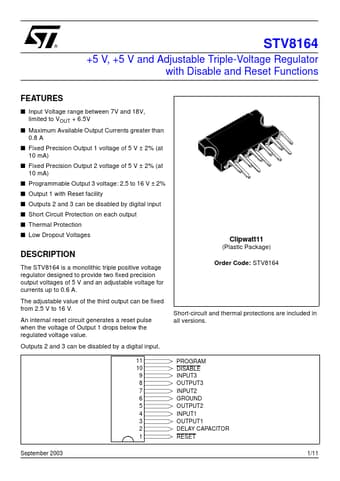

📥 Download Datasheet Datasheet Preview Page 1

Description

® STV8164 +5 V, +5 V and Adjustable Triple-Voltage Regulator with Disable and Reset Functions .
The STV8164 is a monolithic triple positive voltage regulator designed to provide two fixed precision output voltages of 5 V and an adjustable voltage.

📥 Download Datasheet

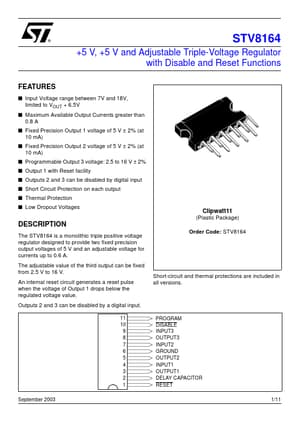

Preview of STV8164 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* s Input Voltage range between 7V and 18V, limited to VOUT + 6.5V s Maximum Available Output Currents greater than 0.8 A s Fixed Precision Output 1 voltage of 5 V ± 2% (at 10 mA) s Fixed Precision Output 2 voltage of 5 V ± 2% (at 10 mA) s Programmable Output 3 voltage: 2.5 to 16 V ± 2% s Output 1 wit

Applications

* all three inputs must be polarized. If Outputs 2 or 3 are not used, the corresponding inputs must be connected to Input 1. The Disable circuit will switch off pins OUTPUT2 and OUTPUT3 if a voltage less than 0.8 V is applied to pin DISABLE. The Reset circuit checks the voltage at pin OUTPUT1. If th
