STV8131 Datasheet - ST Microelectronics

5V AND 8V VOLTAGE REGULATOR

STV8131 General Description

The STV8131 is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5V and 8V at currents up to 1A. Each output can be disabled separately by a TTL input. Short circuit and thermal protections are included. HEPTAWATT (Plastic Package) ORDER CODES: STV8.

STV8131 Datasheet (68.78 KB)

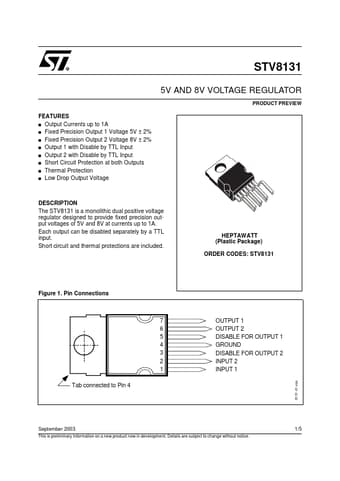

Preview of STV8131 PDF

Datasheet Details

Part number:

STV8131

Manufacturer:

STMicroelectronics ↗

File Size:

68.78 KB

Description:

5v and 8v voltage regulator.
