STV8163 Adjustable Triple-Voltage Regulator

📥 Download Datasheet Datasheet Preview Page 1

Description

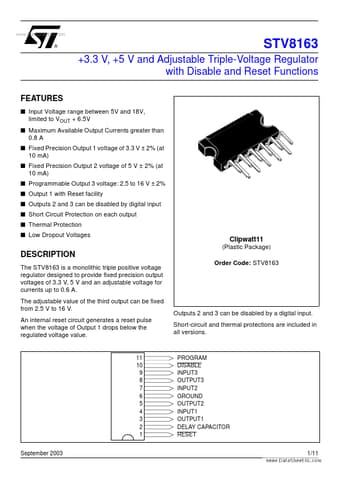

www.DataSheet4U.com ® STV8163 +3.3 V, +5 V and Adjustable Triple-Voltage Regulator with Disable and Reset Functions .
The STV8163 is a monolithic triple positive voltage regulator designed to provide fixed precision output voltages of 3.

📥 Download Datasheet

Preview of STV8163 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* s Input Voltage range between 5V and 18V, limited to VOUT + 6.5V s Maximum Available Output Currents greater than 0.8 A s Fixed Precision Output 1 voltage of 3.3 V ± 2% (at 10 mA) s Fixed Precision Output 2 voltage of 5 V ± 2% (at 10 mA) s Programmable Output 3 voltage: 2.5 to 16 V ± 2% s Output 1 w

Applications

* all three inputs must be polarized. If Outputs 2 or 3 are not used, the corresponding inputs must be connected to Input 1. The Disable circuit will switch off pins OUTPUT2 and OUTPUT3 if a voltage less than 0.8 V is applied to pin DISABLE. The Reset circuit checks the voltage at pin OUTPUT1. If th
