STW265N6F6AG - N-CHANNEL POWER MOSFET

STMicroelectronics

The STW265N6F6AG by STMicroelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STW265N6F6AG N-CHANNEL POWER MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the STW265N6F6AG N-CHANNEL POWER MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STW265N6F6AG
Manufacturer	STMicroelectronics
File Size	514.67 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STW265N6F6AG-STMicroelectronics.pdf

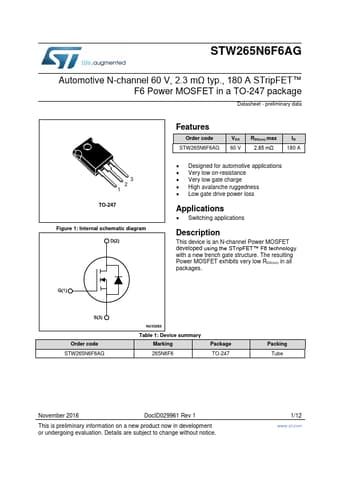

Additional preview pages of the STW265N6F6AG datasheet.

STW265N6F6AG Product details

Description

This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure.

Features

Order code STW265N6F6AG VDS 60 V RDS(on) max 2.85 mΩ ID 180 A.
Designed for automotive.
