STW26NM60 Datasheet - ST Microelectronics

N-CHANNEL Power MOSFET

STW26NM60 Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STW26NM60 General Description

The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The adoption of the Company’s .

STW26NM60 Datasheet (211.21 KB)

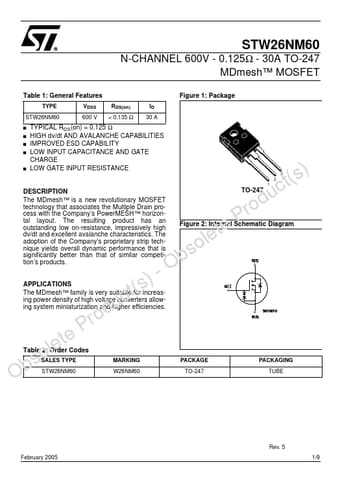

STW26NM60 Datasheet Preview — Preview of STW26NM60 PDF

Datasheet Details

Part number:

STW26NM60

Manufacturer:

STMicroelectronics ↗

File Size:

211.21 KB

Description:

N-channel power mosfet.
N-CHANNEL 600V - 0.125Ω - 26A TO-247 Zener-Protected MDmesh™Power MOSFET TYPE STW26NM60 n n n n n STW26NM60 VDSS 600 V RDS(on) < 0.135 Ω ID 30 A .
