STW26N60M2 Datasheet - STMicroelectronics

N-CHANNEL POWER MOSFET

STW26N60M2 General Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. .

STW26N60M2 Datasheet (641.36 KB)

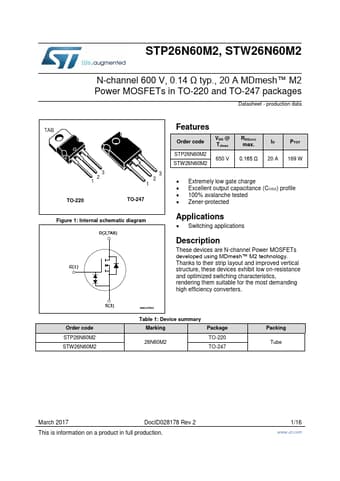

STW26N60M2 Datasheet Preview — Preview of STW26N60M2 PDF

Datasheet Details

Part number:

STW26N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

641.36 KB

Description:

N-channel power mosfet.
STP26N60M2, STW26N60M2 N-channel 600 V, 0.14 Ω typ., 20 A MDmesh™ M2 Power MOSFETs in TO-220 and TO-247 packages Datasheet - production data TAB 3 .
