STW26NM60-H - Power MOSFETs

STMicroelectronics

📥 Download Datasheet

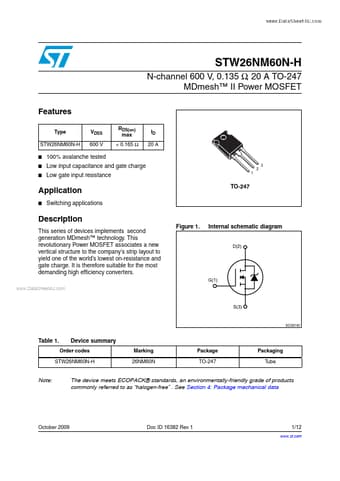

STW26NM60-H Datasheet Preview — Preview of STW26NM60-H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STW26NM60-H
Manufacturer	STMicroelectronics
File Size	712.91 KB
Description	Power MOSFETs
Datasheet	STW26NM60-H_STMicroelectronics.pdf

STW26NM60-H Product details

Description

This series of devices implements second generation MDmesh™ technology.

Features

Type STW26NM60N-H.
VDSS 600 V RDS(on) max < 0.165 Ω ID 20 A 100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-247 1 2 3.
