STW26NM60N Datasheet - STMicroelectronics

N-channel Power MOSFET

STW26NM60N Features

* Type STB26NM60N STF26NM60N STI26NM60N STP26NM60N STW26NM60N

* TAB TAB VDSS 600 V 600 V 600 V 600 V 600 V RDS(on) max < 0.165 Ω < 0.165 Ω < 0.165 Ω < 0.165 Ω < 0.165 Ω ID 3 20 A 20 A 20 A 20 A 20 A TAB 1 2 3 12 3 1 2 TO-220FP I²PAK TO-220 100% avalanche tested Low input

STW26NM60N General Description

These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET applies a new vertical structure to the company’s strip layout to yield a device with one of the world’s lowest on-resistance and gate charge, making it suitable for.

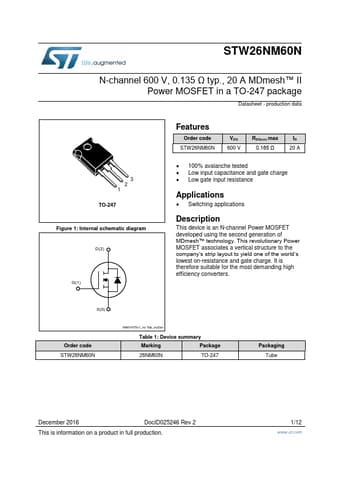

STW26NM60N Datasheet (655.38 KB)

STW26NM60N Datasheet Preview — Preview of STW26NM60N PDF

Datasheet Details

Part number:

STW26NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

655.38 KB

Description:

N-channel power mosfet.
STB26NM60N, STF26NM60, STI26NM60N, STP26NM60N, STW26NM60N N-channel 600 V, 0.135 Ω , 20 A MDmesh™ II Power MOSFET 2 2 in D PAK, I PAK, TO-220, TO-220F.
