STW26NM60ND N-Channel MOSFET

STW26NM60ND Description

STB26NM60ND, STF26NM60ND, STP26NM60ND, STW26NM60ND N-channel 600 V, 0.145 Ω typ., 21 A, FDmesh™ II Power MOSFETs in D²PAK, TO-220FP, TO-220 and TO-247.
These FDmesh™ II Power MOSFETs with intrinsic fast-recovery body diode are produced using the second generation of MDmesh™ technology.

STW26NM60ND Features

* Order codes VDS @ Tjmax RDS(on) max ID STB26NM60ND STF26NM60ND STP26NM60ND 650 V 0.175 21 A STW26NM60ND
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate input resistance
* Extremely high dv/dt and avalanche capabilities ' 7$% App

STW26NM60ND Applications

* Switching applications

📥 Download Datasheet

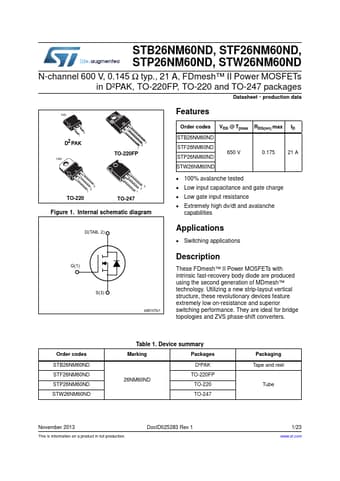

Preview of STW26NM60ND PDF
datasheet Preview Page 2 datasheet Preview Page 3
