STW32NM50N N-channel MOSFET

STW32NM50N Description

STB32NM50N, STF32NM50N, STP32NM50N, STW32NM50N N-channel 500 V, 0.1 Ω typ., 22 A MDmesh™ II Power MOSFET in D²PAK, TO-220FP, TO-220, TO-247 packages D.
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology.

STW32NM50N Features

* TAB Order codes STB32NM50N STF32NM50N STP32NM50N STW32NM50N
* VDS RDS(on) max. ID PTOT 190 W 35 W 190 W 190 W 2 3 1 3 1 2 D²PAK TAB 500 V 0.13 Ω TO-220FP 22 A 100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-220 3 1 2 2 1 3 TO-2

📥 Download Datasheet

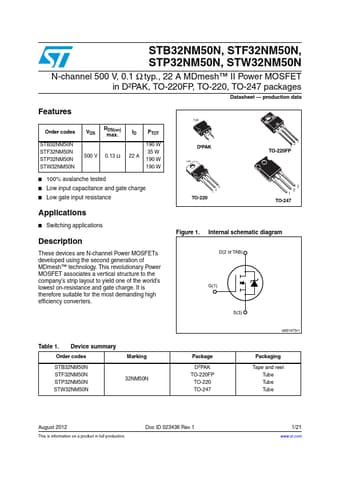

Preview of STW32NM50N PDF
datasheet Preview Page 2 datasheet Preview Page 3
