STW72N60DM2AG

N-CHANNEL MOSFET

STMicroelectronics

STW72N60DM2AG Features

* Order code STW72N60DM2AG VDS 600 V RDS(on) max. 0.042 Ω ID 68 A PTOT 446 W

* Fast-recovery body diode

* Extremely low gate charge and input capacitance

* Low on-resistance

* 100% avalanche tested

* Extremely high dv/dt ruggedness

* Zener-protected Applications

* Swit

STW72N60DM2AG General Description

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Qrr) and time (trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shi.

STW72N60DM2AG Datasheet (590.09 KB)

STW72N60DM2AG Datasheet Preview — Preview of STW72N60DM2AG PDF

Datasheet Details

Part number:

STW72N60DM2AG

Manufacturer:

STMicroelectronics ↗

File Size:

590.09 KB

Description:

N-channel mosfet.

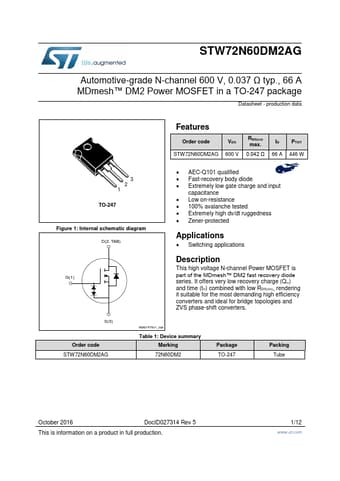

STW72N60DM2AG Automotive N-channel 600 V, 0.037 Ω typ., 68 A MDmesh™ DM2 Power MOSFET in a TO-247 package Datasheet - production data 3 2 1 TO-247 F.
