STP8444 N-Channel MOSFET

STP8444 Description

STB/P8444 S a mHop Microelectronics C orp.Ver 1.0 N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY V DSS 40V .

STP8444 Features

* Super high dense cell design for low R DS(ON). Rugged and reliable. TO-220 and TO-263 Package. ID 80A R DS(ON) (m Ω) Max 4.8 @ VGS=10V D D G S G D S G STP SERIES TO-220 STB SERIES TO-263(DD-PAK) S ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ

📥 Download Datasheet

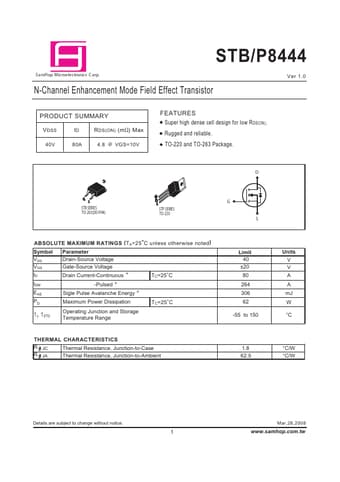

Preview of STP8444 PDF
datasheet Preview Page 2 datasheet Preview Page 3
