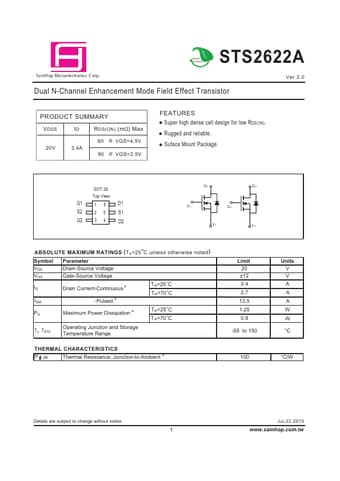

* Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ID 3.4A R DS(ON) (m Ω) Max 60 @ VGS=4.5V 90 @ VGS=2.5V SOT 26 Top View D1 D2 G1 S2 G2 1 2 3 6 5 4 D1 S1 D2 G1 G2 S1 S2 ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS
STS2622A Datasheet (166.79 KB)
STS2622A
SamHop Microelectronics
166.79 KB
Dual n-channel mosfet.
Green Product
STS2622A
Ver 2.0
S a mHop Microelectronics C orp.
Dual N-Channel Enhancement Mode Field Effect Transistor
PRODUCT SUMMARY
V DSS
20V
.
