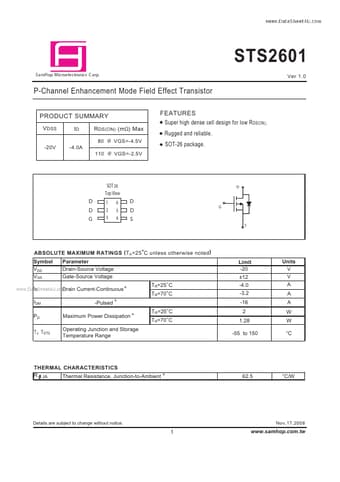

STS2601 Datasheet, Transistor, SamHop Microelectronics

STS2601 Features

• Transistor Super high dense cell design for low R DS(ON). Rugged and reliable. SOT-26 package. ID -4.0A R DS(ON) (m Ω) Max 80 @ VGS=-4.5V 110 @ VGS=-2.5V SOT 26 Top View D D D G 1 2 3 6 5 4

PDF File Details

Part number:

STS2601

Manufacturer:

SamHop Microelectronics

File Size:

186.60kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode field effect transistor.

TAGS

STS2601

SamHop Microelectronics
