STS26N3LLH6 Datasheet - STMicroelectronics

N-channel Power MOSFET

STS26N3LLH6 Features

* Type STS26N3LLH6 VDSS 30 V RDS(on) max 0.0044 Ω

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* High avalanche ruggedness

* Low gate drive power losses

* Very low switching gate charge ID 26 A Applications

* Switching applications Descript

STS26N3LLH6 General Description

This product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages. 8 76 5 1 2 34 SO-8 Figure 1. Internal schematic diagram Table 1. Device summary Order code STS26N3LLH.

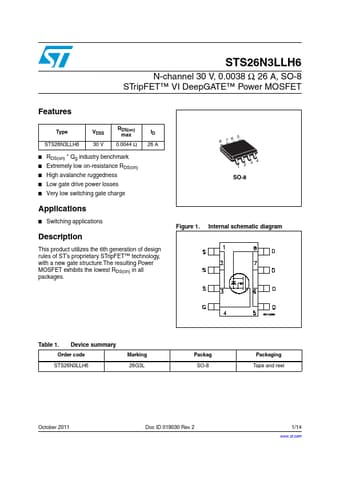

STS26N3LLH6 Datasheet (724.63 KB)

Preview of STS26N3LLH6 PDF

Datasheet Details

Part number:

STS26N3LLH6

Manufacturer:

STMicroelectronics ↗

File Size:

724.63 KB

Description:

N-channel power mosfet.
