K4S56163PF - 4M x 16Bit x 4 Banks Mobile SDRAM in 54FBGA

Samsung semiconductor

The K4S56163PF by Samsung semiconductor is a 4M x 16Bit x 4 Banks Mobile SDRAM in 54FBGA. Below is the official datasheet preview.

📥 Download Datasheet

K4S56163PF 4M x 16Bit x 4 Banks Mobile SDRAM in 54FBGA by Samsung semiconductor - Datasheet Preview — Official preview page of the **K4S56163PF** 4M x 16Bit x 4 Banks Mobile SDRAM in 54FBGA datasheet (Samsung semiconductor).

Datasheet Details

Part number	K4S56163PF
Manufacturer	Samsung semiconductor
File Size	114.91 KB
Description	4M x 16Bit x 4 Banks Mobile SDRAM in 54FBGA
Datasheet	K4S56163PF_Samsungsemiconductor.pdf

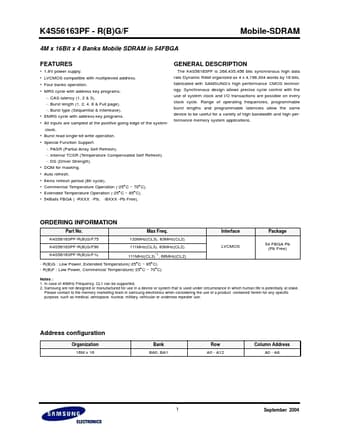

Additional preview pages of the K4S56163PF datasheet.

K4S56163PF Product details

Description

The K4S56163PF is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 4,196,304 words by 16 bits, fabricated with SAMSUNG’s high performance CMOS technology.

Features

1.8V power supply.
LVCMOS compatible with multiplexed address.
Four banks operation.
MRS cycle with address key programs. -. CAS latency (1, 2 & 3). -. Burst length (1, 2, 4, 8 & Full page). -. Burst type (Sequential & Interleave).
EMRS cycle with address key programs.
All inputs are sampled at the positive going edge of the system clock.
Burst read single-bit write operation.
Special Function Support. -. PASR (Parti.
