K4S56163PF-RG

4M x 16Bit x 4 Banks Mobile SDRAM in 54FBGA

K4S56163PF-RG Features

* 1.8V power supply.

* LVCMOS compatible with multiplexed address.

* Four banks operation.

* MRS cycle with address key programs. -. CAS latency (1, 2 & 3). -. Burst length (1, 2, 4, 8 & Full page). -. Burst type (Sequential & Interleave).

* EMRS cycle with ad

K4S56163PF-RG General Description

The K4S56163PF is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 4,196,304 words by 16 bits, fabricated with SAMSUNG’s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock and I/O transactions are possible on every c.

K4S56163PF-RG Datasheet (114.91 KB)

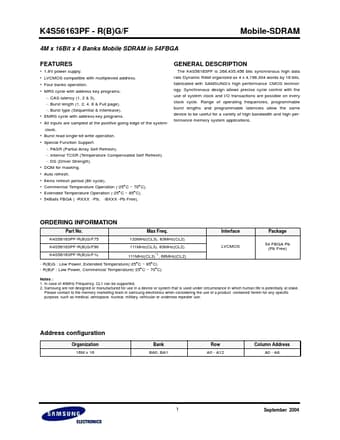

Preview of K4S56163PF-RG PDF

Datasheet Details

Part number:

K4S56163PF-RG

Manufacturer:

Samsung semiconductor

File Size:

114.91 KB

Description:

4m x 16bit x 4 banks mobile sdram in 54fbga.
