K4D551638H - 256Mbit GDDR SDRAM

Samsung

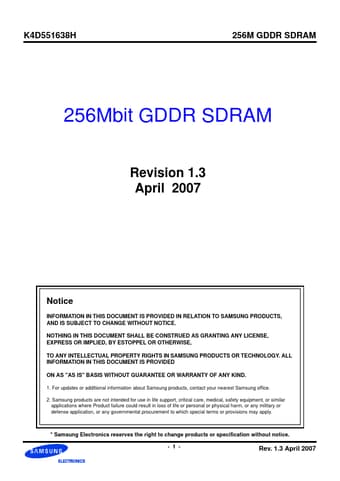

K4D551638H Datasheet Preview — Preview of K4D551638H PDF

Datasheet Details

Part number	K4D551638H
Manufacturer	Samsung
File Size	235.41 KB
Description	256Mbit GDDR SDRAM
Datasheet	K4D551638H-Samsung.pdf

K4D551638H Product details

Description

FOR 4M x 16Bit x 4 Bank GDDR SDRAM The K4D551638H is 268,435,456 bits of hyper synchronous data rate Dynamic RAM organized as 4 x 4,194,304 words by 16 bits, fabricated with SAMSUNG’s high performance CMOS technology.Synchronous

Features

2.35V ~ 2.7V power supply for device operation.
2.35V ~ 2.7V power supply for I/O interface.
SSTL_2 compatible inputs/outputs.
4 banks operation.
MRS cycle with address key programs -. Read latency 2.5, 3 (clock) -. Burst length (2, 4 and 8) -. Burst type (sequential & interleave).
All inputs except data & DM are sampled at the positive going edge of the system clock.
Differential clock input.
No Write-Interrupted by Read F.
