2SC5453

NPN Triple Diffused Planar Silicon Transistor

2SC5453 Features

* High speed.

* High breakdown voltage (VCBO=1600V).

* High reliability (Adoption of HVP process).

* Adoption of MBIT process. Package Dimensions unit:mm 2048B [2SC5453] 6.0 20.0 3.3 5.0 26.0 2.0 3.4 20.7 2.0 1.0 0.6 1.2 Specifications Absolute Maximum Ratings at Ta = 25˚C Pa

2SC5453 Datasheet (67.99 KB)

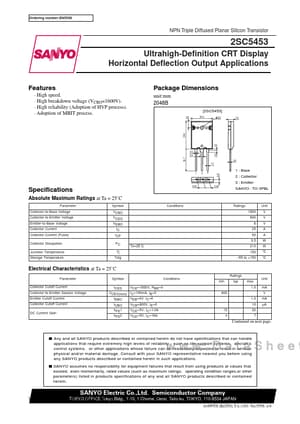

Preview of 2SC5453 PDF

Datasheet Details

Part number:

2SC5453

Manufacturer:

Sanyo Semicon Device

File Size:

67.99 KB

Description:

Npn triple diffused planar silicon transistor.
Ordering number:EN5958 NPN Triple Diffused Planar Silicon Transistor 2SC5453 Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicati.
