2SD1883 NPN Triple Diffused Planar Silicon Transistor

2SD1883 Description

Ordering number:EN2430 NPN Triple Diffused Planar Silicon Transistor 2SD1883 Color TV Horizontal Deflection Output Applications Applications * C.

2SD1883 Features

* High speed (tf=100ns).
* High breakdown voltage (VCBO=1500V).
* High reliability (adoption of HVP process). 5.6 3.1 21.0 22.0 4.0 2.8 2.0 20.4 2.0 1.0 0.6 1 2 3 3.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter

2SD1883 Applications

* Applications
* Color TV horizontal diflection output.

📥 Download Datasheet

Preview of 2SD1883 PDF

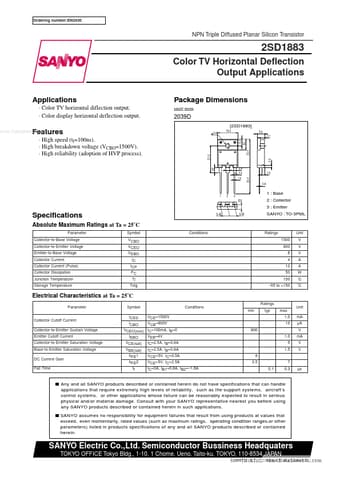

datasheet Preview Page 2 datasheet Preview Page 3
