STT3470N

N-Channel MOSFET

STT3470N Features

* DG

* Low RDS(on) provides higher efficiency and extend battery life Low thermal impedance copper leadframe TSOP-6 saves board space Fast switching speed High performance trench technology REF. A B C D E F Millimeter Min. Max. 2.70 3.10 2.60 3.00 1.40 1.80 1.10 MAX. 1.90 R

STT3470N General Description

These miniature surface mount MOSFETs utilize a High Cell Density trench process to provide Low RDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA c.

STT3470N Datasheet (163.00 KB)

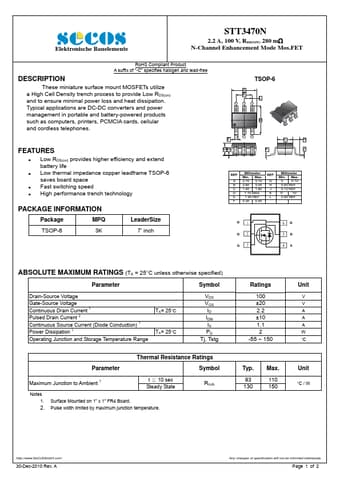

Preview of STT3470N PDF

Datasheet Details

Part number:

STT3470N

Manufacturer:

SeCoS

File Size:

163.00 KB

Description:

N-channel mosfet.
STT3470N Elektronische Bauelemente 2.2 A, 100 V, RDS(ON) 280 mļ— N-Channel Enhancement Mode Mos.FET RoHS Compliant Product A suffix of ā€œ-Cā€ specifies .
