BB512 Datasheet - Siemens Group

BB512 Silicon Variable Capacitance Diode (For AM tuning applications Specified tuning range 1 8 V)

BB 512 Silicon Variable Capacitance Diode q q BB 512 For AM tuning applications Specified tuning range 1 … 8 V Type BB 512 Ordering Code (tape and reel) Q62702-B479 Pin Configuration 1 2 C A Marking white M Package SOD-123 Maximum Ratings Parameter Reverse voltage Reverse voltage (R ≥ 10 kΩ) Forward current, TA ≤ 60 ˚C Operating temperature range Storage temperature range Thermal Resistance Junction - ambient Rth JA ≤ Symbol VR VRM IF Top Tstg Values 12 15 50 55 … + 150 Uni.

BB512_SiemensSemiconductorGroup.pdf

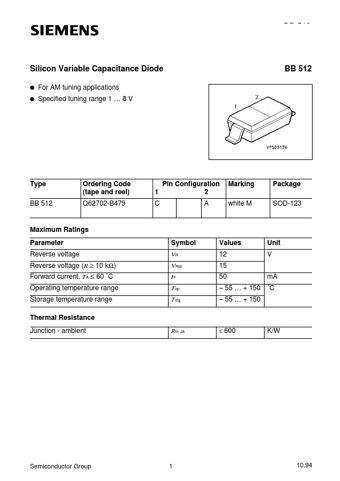

Preview of BB512 PDF
BB512 Datasheet Preview Page 2 BB512 Datasheet Preview Page 3

Datasheet Details

Part number:

BB512

Manufacturer:

Siemens Group

File Size:

45.37 KB

Description:

Silicon variable capacitance diode (for am tuning applications specified tuning range 1 8 v).
