BB535 Silicon Variable Capacitance Diode (For UHF and TV/TR tuners Large capacitance ratio / low series resistance)

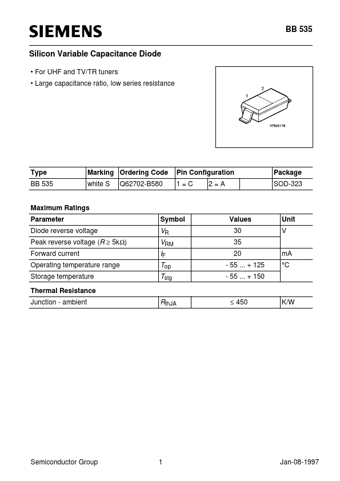

BB 535 Silicon Variable Capacitance Diode For UHF and TV/TR tuners Large capacitance ratio, low series resistance Type BB 535 Marking Ordering Code white S Q62702-B580 Pin Configuration 1=C 2=A Package SOD-323 Maximum Ratings Parameter Diode reverse voltage Peak reverse voltage (R ≥ 5kΩ) Forward current Operating temperature range Storage temperature Thermal Resistance Junction - ambient Symbol Values 30 35 20 - 55 + 125 - 55 + 150 mA °C Unit V VR VRM IF Top Tstg Rth.

BB535_SiemensSemiconductorGroup.pdf

Preview of BB535 PDF
BB535 Datasheet Preview Page 2 BB535 Datasheet Preview Page 3

Datasheet Details

Part number:

BB535

Manufacturer:

Siemens Group

File Size:

23.71 KB

Description:

Silicon variable capacitance diode (for uhf and tv/tr tuners large capacitance ratio / low series resistance).
