BB545 Silicon Tuning Diode (For tuning UHF and VHF TV Tuners Large capacitance ratio / low series resistance)

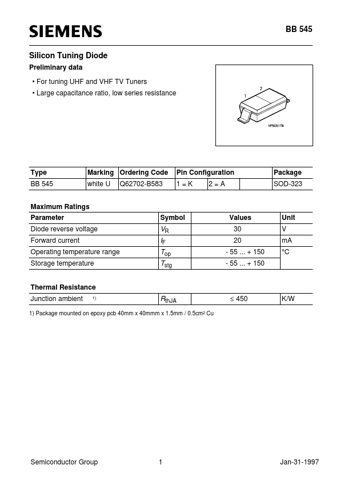

BB 545 Silicon Tuning Diode Preliminary data For tuning UHF and VHF TV Tuners Large capacitance ratio, low series resistance Type BB 545 Marking Ordering Code white U Q62702-B583 Pin Configuration 1=K 2=A Package SOD-323 Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage temperature Symbol Values 30 20 - 55 + 150 - 55 + 150 Unit V mA °C VR IF Top Tstg Thermal Resistance Junction ambient 1) RthJA ≤ 450 K/W 1) Packag.
