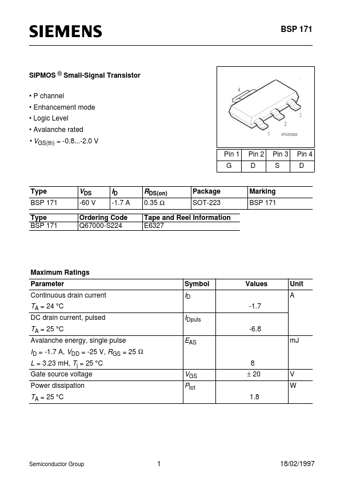

BSP 171
SIPMOS ® Small-Signal Transistor • P channel • Enhancement mode • Logic Level • Avalanche rated
• VGS(th) = -0.8...-2.0 V
Pin 1 G Pin 2 D Pin 3 S Pin 4 D
Type BSP 171 Type BSP 171
VDS
-60 V
ID
-1.7 A
RDS(on)
0.35 Ω
Package SOT-223
Marking BSP 171
Ordering Code Q67000-S224
Tape and Reel Information E6327
Maximum Ratings Parameter Continuous drain current Symbol Values -1.7 Unit A
ID IDpuls
-6.8
TA = 24 °C
DC drain current, pulsed
TA = 25 °C
Avalanche energy, single pulse
EAS
8
mJ
ID = -1.7 A, VDD = -25 V, RGS = 25 Ω L = 3.23 mH, Tj = 25 °C
Gate source voltage Power dissipation
VGS Ptot
± 20 1.
BSP171 Datasheet
