SVF11N65F, SVF11N65T Datasheet - Silan Microelectronics

SVF11N65F 650V N-CHANNEL MOSFET

The SVF11N65T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provid.

SVF11N65F Features

* 11A, 650V, RDS(on)(typ.)= 0.76Ω@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF11N65T SVF11N65F Package TO-220-3L TO-220F-3L Marking SVF11N65T SVF11N65F Material Pb free Pb free Packing Tube

SVF11N65T-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVF11N65F, SVF11N65T. Please refer to the document for exact specifications by model.

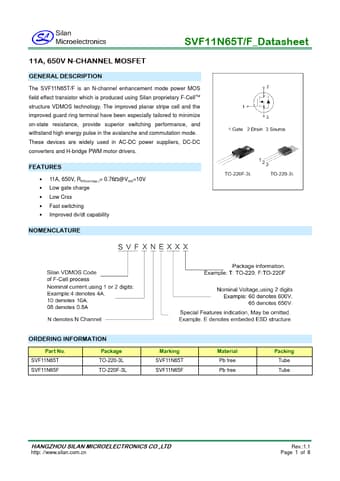

SVF11N65F Datasheet Preview Page 2 SVF11N65F Datasheet Preview Page 3

Datasheet Details

Part number:

SVF11N65F, SVF11N65T

Manufacturer:

Silan Microelectronics

File Size:

284.33 KB

Description:

650v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF11N65F, SVF11N65T.
Please refer to the document for exact specifications by model.
