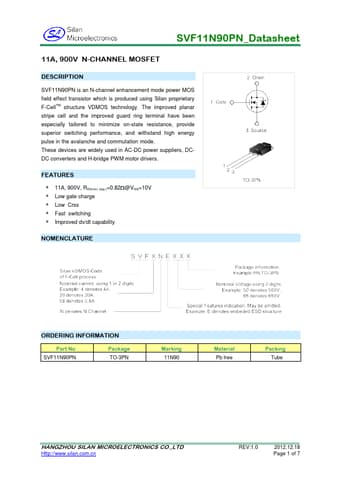

SVF11N90PN Datasheet (Silan Microelectronics)

SVF11N90PN, MOSFET

SVF11N90PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.

The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide sup

SVF11N90PN Features

* ∗ 11A, 900V, RDS(on) (typ.)=0.82Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF11N90PN Package TO-3PN Marking 11N90 Material Pb free Packing Tube HANGZHOU SILAN MICROELECTRONICS CO.,LTD Http://www.silan.com.cn
