SVGQ041R7NL5V-2HS - 40V N-CHANNEL MOSFET

Silan Microelectronics

📥 Download Datasheet

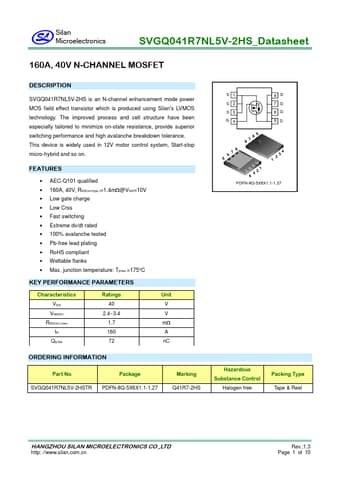

SVGQ041R7NL5V-2HS Datasheet Preview — Preview of SVGQ041R7NL5V-2HS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SVGQ041R7NL5V-2HS
Manufacturer	Silan Microelectronics
File Size	367.02 KB
Description	40V N-CHANNEL MOSFET
Datasheet	SVGQ041R7NL5V-2HS-SilanMicroelectronics.pdf

SVGQ041R7NL5V-2HS Product details

Description

SVGQ041R7NL5V-2HS is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.

Features

AEC-Q101 qualified.
160A, 40V, RDS(on)(typ. )=1.4m@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Extreme dv/dt rated.
100% avalanche tested.
Pb-free lead plating.
RoHS compliant.
Wettable flanks.
Max. junction temperature: Tjmax. =175ºC KEY.
