SVGQ042R8NL5V-2HS - 40V N-CHANNEL MOSFET

Silan Microelectronics

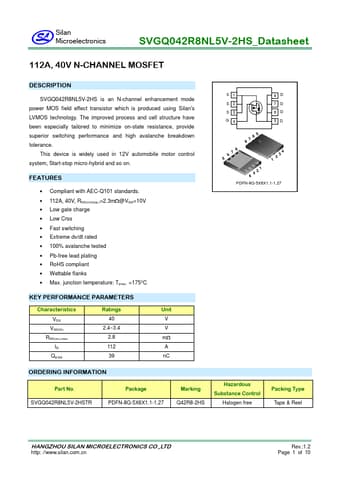

SVGQ042R8NL5V-2HS Datasheet Preview — Preview of SVGQ042R8NL5V-2HS PDF

Datasheet Details

Part number	SVGQ042R8NL5V-2HS
Manufacturer	Silan Microelectronics
File Size	396.16 KB
Description	40V N-CHANNEL MOSFET
Datasheet	SVGQ042R8NL5V-2HS-SilanMicroelectronics.pdf

SVGQ042R8NL5V-2HS Product details

Description

S1 8D SVGQ042R8NL5V-2HS is an N-channel enhancement mode S2 7D power MOS field effect transistor which is produced using Silan's S3 6D LVMOS technology.The improved process and cell structure have G4 5D been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown tolerance.This device is widely used in 12V automobile motor control system, Start-stop micro-hybrid and so on.

Features

Compliant with AEC-Q101 standards.
112A, 40V, RDS(on)(typ. )=2.3m@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Extreme dv/dt rated.
100% avalanche tested.
Pb-free lead plating.
RoHS compliant.
Wettable flanks.
Max. junction temperature: Tjmax。=175ºC KEY.
