SVSP14N65KD2

650V SUPER JUNCTION MOS POWER TRANSISTOR

Silan Microelectronics

SVSP14N65KD2 Features

* 14A,650V, RDS(on)(typ.)=0.26@VGS=10V

* New revolutionary high voltage technology

* Ultra low gate charge

* Periodic avalanche rated

* Extreme dv/dt rated

* High peak current capability 123 12 3 TO-220FJD-3L TO-220-3L ORDERING INFORMATION Part No. SVSP14N65FJDD2 SVSP1

SVSP14N65KD2 General Description

SVSP14N65FJD/T/KD2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s DPMOS technology. It achieves low conduction loss and switching losses. It leads the design engineers to their power converters with high efficiency, high power density, and superior thermal behavio.

SVSP14N65KD2 Datasheet (303.37 KB)

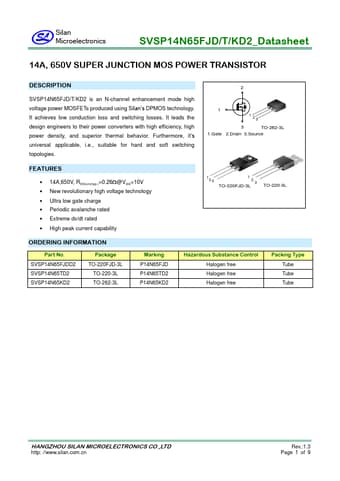

SVSP14N65KD2 Datasheet Preview — Preview of SVSP14N65KD2 PDF

Datasheet Details

Part number:

SVSP14N65KD2

Manufacturer:

Silan Microelectronics

File Size:

303.37 KB

Description:

650v super junction mos power transistor.
