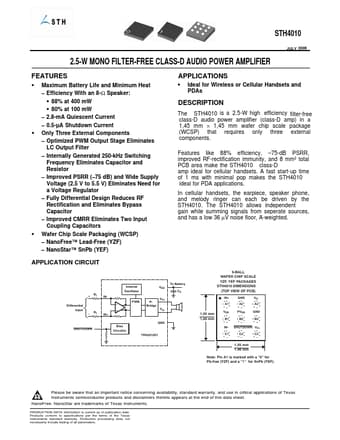

STH4010 - 2.5-W MONO FILTER-FREE CLASS-D AUDIO POWER AMPLIFIER

Datasheet Details

Part number	STH4010
Manufacturer	Sitch Semiconductors
File Size	916.03 KB
Description	2.5-W MONO FILTER-FREE CLASS-D AUDIO POWER AMPLIFIER
Datasheet	STH4010-SitchSemiconductors.pdf

The STH4010 is a 2.5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm × 1,45 mm wafer chip

Maximum Battery Life and Minimum Heat.
Efficiency With an 8-Ω Speaker:.
88% at 400 mW.
80% at 100 mW.
2.8-mA Quiescent Current.
0.5-µA Shutdown Current.
Only Three External Components.
Optimized PWM Output Stage Eliminates LC Output Filter.
Internally Generated 250-kHz Switching Frequency Eliminates Capacitor and Resistor.
Improved PSRR (.
75 dB) and Wide Supply Voltage (2.5 V to 5.5 V) Eliminates N.
