STH400N4F6-2 N-channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

STH400N4F6-2, STH400N4F6-6 Automotive-grade N-channel 40 V, 0.85 mΩ typ.,180 A STripFET™ VI DeepGATE™ Power MOSFETs Datasheet - production data Featu.
G(1) S(2, 3) H2PAK-2 G(1) S(2, 3, 4, 5, 6, 7) H2PAK-6 AM14551V1 These devices are N-channel Power MOSFETs th developed using the 6 generation of ST.

📥 Download Datasheet

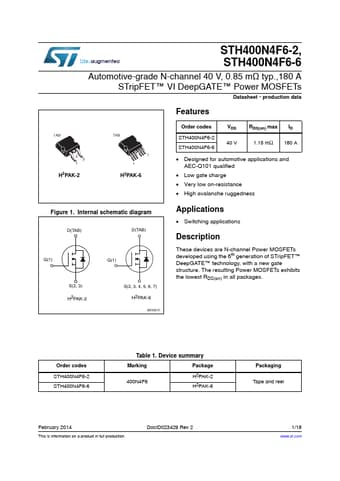

Preview of STH400N4F6-2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* TAB 2 3 1 H2PAK-2 TAB 7 1 H2PAK-6 Order codes VDS RDS(on) max ID STH400N4F6-2 STH400N4F6-6 40 V 1.15 mΩ 180 A

Applications

* and AEC-Q101 qualified
* Low gate charge
* Very low on-resistance
* High avalanche ruggedness Figure 1. Internal schematic diagram D(TAB) D(TAB) Applications

STH400N4F6-2 Distributors
