STH48D35, STH24D12 Solid-State Relays

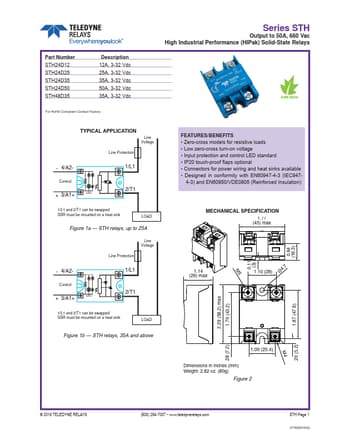

📥 Download Datasheet  Datasheet Preview Page 1

Description

Part Number STH24D12 STH24D25 STH24D35 STH24D50 STH48D35 .
12A, 3-32 Vdc 25A, 3-32 Vdc 35A, 3-32 Vdc 50A, 3-32 Vdc 35A, 3-32 Vdc For RoHS Compliant Contact Factory Series STH Output to 50A, 660 Vac High Indu.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STH48D35, STH24D12. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STH48D35, STH24D12
Manufacturer
TELEDYNE
File Size
314.15 KB
Datasheet
STH24D12-TELEDYNE.pdf
Description
Solid-State Relays
Note
This datasheet PDF includes multiple part numbers: STH48D35, STH24D12.
Please refer to the document for exact specifications by model.

Features

* BENEFITS
* Zero-cross models for resistive loads
* Low zero-cross turn-on voltage
* Input protection and control LED standard
* IP20 touch-proof flaps optional
* Connectors for power wiring and heat sinks available
* Designed in conformity with EN60947-
