SKY77154 - System Smart PA Module

Datasheet Summary

Description

The SKY77154 System Smart® Power Amplifier Module (PAM) is a fully matched, 8-pin surface mount module developed for Code Division Multiple Access (CDMA) / Advanced Mobile Phone Service (AMPS) and Wireless Local Loop (WLL) applications.

849 M

Features

  • Low voltage positive bias supply - 3.2 V to 4.2 V.
  • Low VREF - 2.85 V, nominal.
  • Low IREF - less than 1 mA.
  • Good linearity.
  • High efficiency.
  • Large dynamic range.
  • 8-pin package - 3 x 3 x 1.2 mm.
  • Power down control.
  • Dynamic bias control.
  • InGaP.
  • IS95/CDMA2000/EVDO MODULE VCONT (3) MMIC Driver Stage Bias Power Stage Bias Skyworks offers lead (Pb)-free "environmentally friendly" packaging that is RoHS.

📥 Download Datasheet

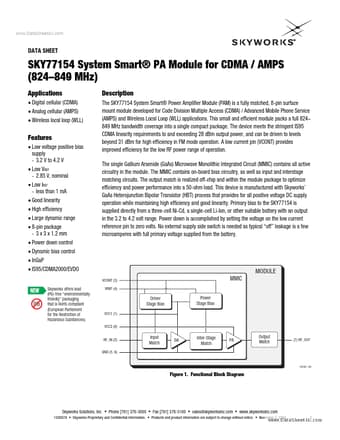

Datasheet preview – SKY77154
