SKY77163 - AutoSmart PA Module

Datasheet Summary

Description

The SKY77163 AutoSmart™ Power Amplifier Module (PAM) is a fully matched, 8-pin surface mount module developed for Code Division Multiple Access (CDMA) / Advanced Mobile Phone Service (AMPS) and Wireless Local Loop (WLL) applications.

Features

  • Low voltage positive bias supply - 3.2 V to 4.2 V.
  • Low VREF - 2.85 V, nominal.
  • Low IREF - less than 2 mA.
  • Good linearity.
  • High efficiency.
  • Large dynamic range.
  • 8-pin package - 3 x 3 x 1.2 mm.
  • Power down control.
  • InGaP.
  • IS95/CDMA2000 VREF Feedback Control Circuit Driver Stage Bias VBIAS VCC RF_IN Input Match DA Inter-Stage Match PA Power Stage Bias MODULE Output Match RF_OUT GND 200337_001 Figure 1. F.

📥 Download Datasheet

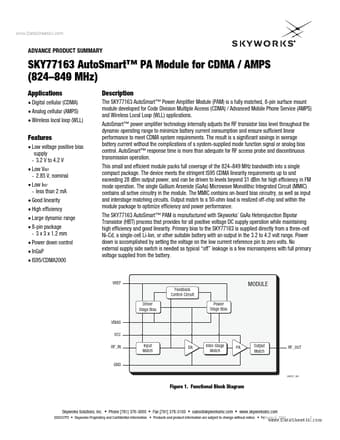

Datasheet preview – SKY77163

Datasheet Details

Part number SKY77163
Manufacturer Skyworks Solutions
File Size 74.89 KB
Description AutoSmart PA Module
Datasheet download datasheet SKY77163 Datasheet
Additional preview pages of the SKY77163 datasheet.

📁 Similar Datasheet

  • SKY77148 - PA Module for CDMA2000 (450-460 MHz) (ETC)
  • SKY77518 - TX-RX iPAC FEM (Skyworks)
  • SKY77518-21 - FEM FOR DUAL-BAND GSM/GPRS (Skyworks)
  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)
Other Datasheets by Skyworks Solutions

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com ADVANCE PRODUCT SUMMARY SKY77163 AutoSmart™ PA Module for CDMA / AMPS (824–849 MHz) Applications • Digital cellular (CDMA) • Analog cellular (AMPS) • Wireless local loop (WLL) Description The SKY77163 AutoSmart™ Power Amplifier Module (PAM) is a fully matched, 8-pin surface mount module developed for Code Division Multiple Access (CDMA) / Advanced Mobile Phone Service (AMPS) and Wireless Local Loop (WLL) applications. AutoSmart™ power amplifier technology internally adjusts the RF transistor bias level throughout the dynamic operating range to minimize battery current consumption and ensure sufficient linear performance to meet CDMA system requirements.
