SKY77161 - PA Module

Datasheet Summary

Description

at any time, without notice.

Skyworks makes no commitment to update the information and shall have no responsibility whatsoever for conflicts, incompatibilities, or other difficulties arising from future changes to its products and product descriptions.

Features

  • Low voltage positive bias supply - 3.2 V to 4.2 V.
  • Low VREF - 2.85 V, nominal.
  • Supports low collector voltage operation.
  • Good linearity.
  • High efficiency.
  • Large dynamic range.
  • 10-pin package - 4 mm x 4 mm x 1.5 mm.
  • Power down control.
  • Low power-state control.
  • InGaP Figure 1. Functional Block Diagram Skyworks Solutions, Inc.
  • Phone [781] 376-3000.
  • Fax [781] 376-3100.
  • sales@skywor.

📥 Download Datasheet

Datasheet preview – SKY77161

Datasheet Details

Part number SKY77161
Manufacturer Skyworks Solutions
File Size 114.91 KB
Description PA Module
Datasheet download datasheet SKY77161 Datasheet
Additional preview pages of the SKY77161 datasheet.

📁 Similar Datasheet

  • SKY77148 - PA Module for CDMA2000 (450-460 MHz) (ETC)
  • SKY77518 - TX-RX iPAC FEM (Skyworks)
  • SKY77518-21 - FEM FOR DUAL-BAND GSM/GPRS (Skyworks)
  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)
Other Datasheets by Skyworks Solutions

Full PDF Text Transcription

Click to expand full text

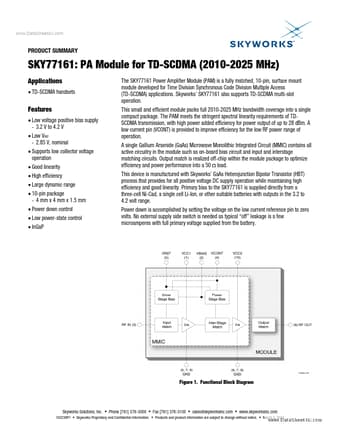

www.DataSheet4U.com PRODUCT SUMMARY SKY77161: PA Module for TD-SCDMA (2010-2025 MHz) Applications • TD-SCDMA handsets The SKY77161 Power Amplifier Module (PAM) is a fully matched, 10-pin, surface mount module developed for Time Division Synchronous Code Division Multiple Access (TD-SCDMA) applications. Skyworks’ SKY77161 also supports TD-SCDMA multi-slot operation. This small and efficient module packs full 2010-2025 MHz bandwidth coverage into a single compact package. The PAM meets the stringent spectral linearity requirements of TDSCDMA transmission, with high power added efficiency for power output of up to 28 dBm. A low current pin (VCONT) is provided to improve efficiency for the low RF power range of operation.
